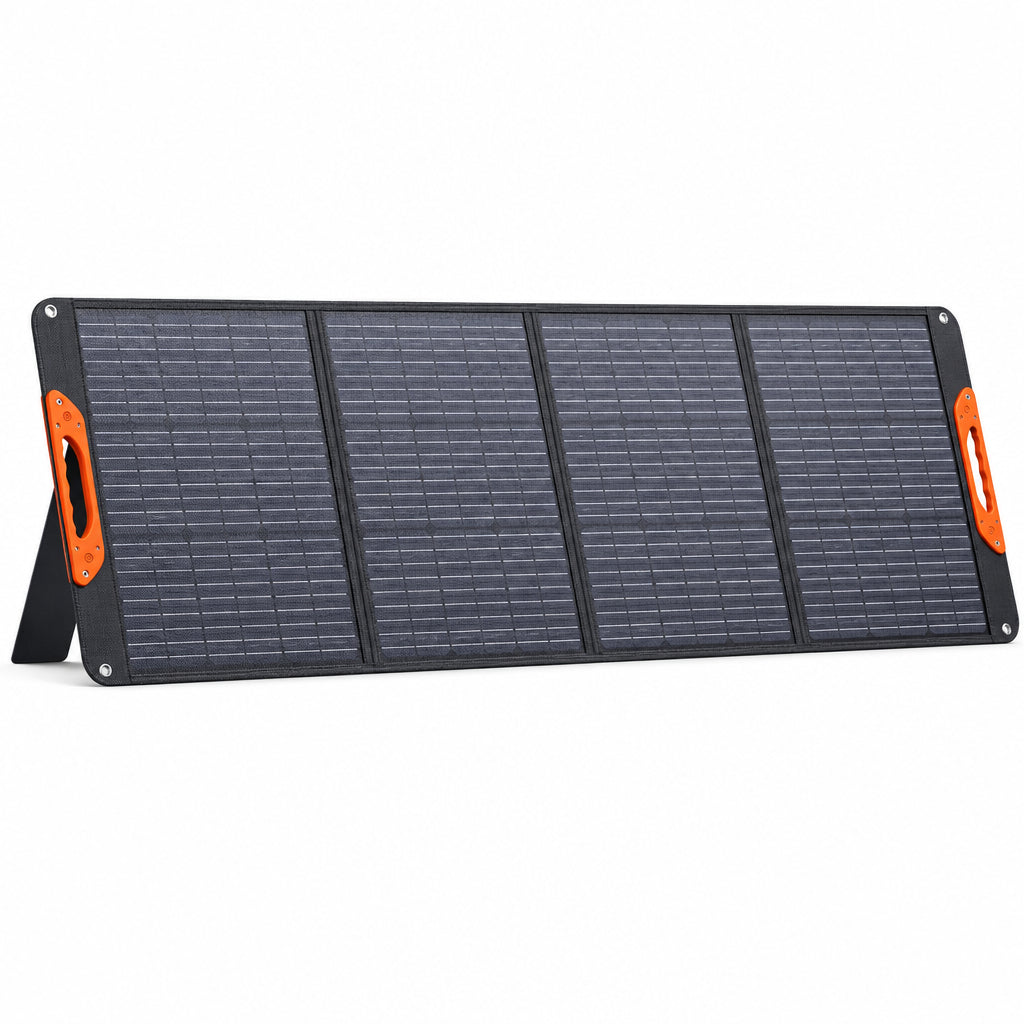

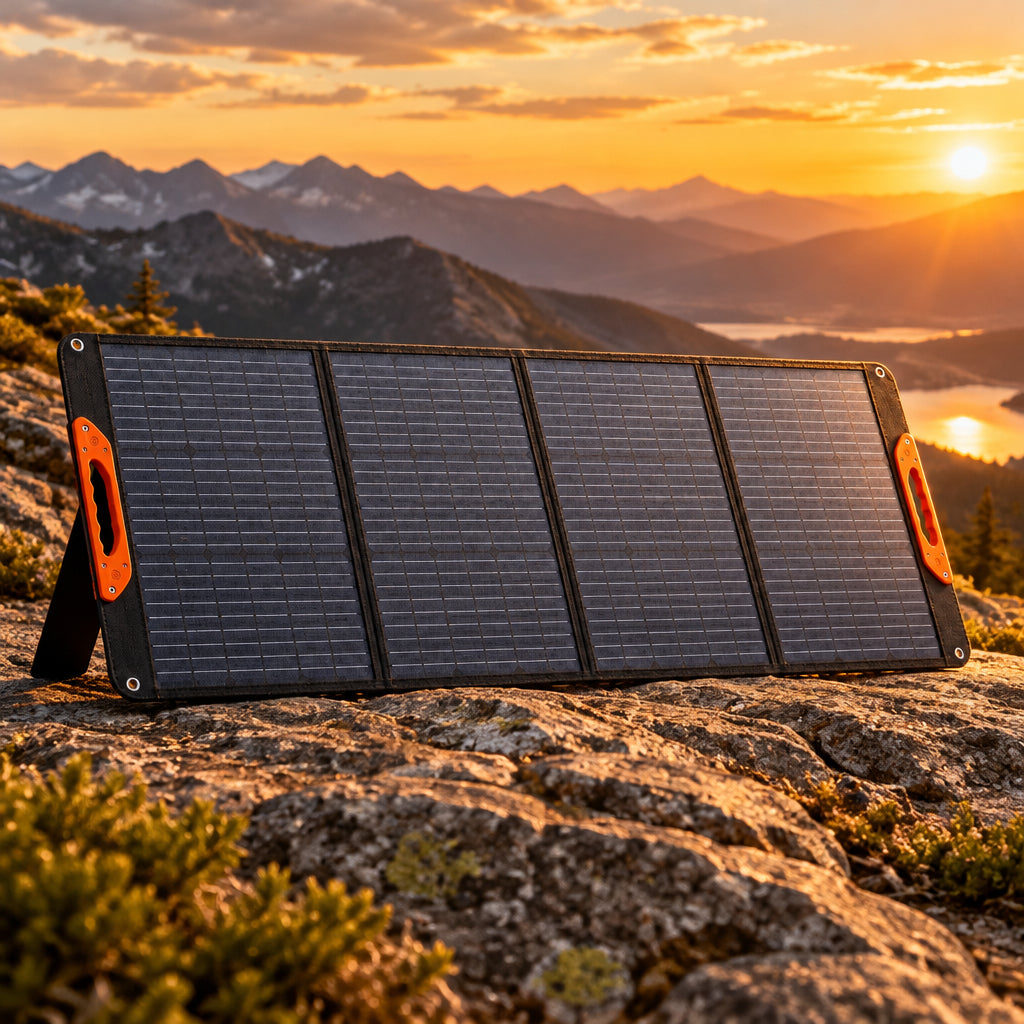

200W Portable Solar Panel for Power Station,23.5% Efficiency

200W Portable Solar Panel for Power Station,23.5% Efficiency provides a versatile solar charging solution for camping, RV trips, off-grid activities, and home backup power. Featuring A+ Grade monocrystalline silicon cells with up to 23.5% conversion efficiency, this portable panel generates electricity from sunlight and continues producing power under cloudy conditions at reduced output. Its ETFE-coated surface offers heat resistance, corrosion protection, and IP67 waterproofing for the panel body. The foldable briefcase-style design includes magnetic handles and four adjustable kickstands for convenient transport and positioning. A 5-in-1 solar charging cable supports multiple power station connections, while integrated USB-A and USB-C ports allow direct charging of compatible electronic devices.

Specifications

• Product Type: Portable Foldable Monocrystalline Solar Panel

• Maximum Power: 200 W

• Conversion Efficiency: Up to 23.5%

• Solar Cell Type: A+ Grade Monocrystalline Silicon

• Surface Material: ETFE Coating

• STC Maximum Voltage: 20.16 V

• STC Maximum Current: 9.92 A

• Open-Circuit Voltage (Voc): 24.3 V

• Short-Circuit Current: 10.5 A

• Amperage Capacity: 10.5 A

• Unfolded Size: 93.8 × 21.1 × 1.0 in

• Product Dimensions: 93.78"L x 21.06"W x 0.98"H

• Folded Size: 25.0 × 21.1 × 2.0 in (25*21.06*1.97 IN)

• Panel Weight: 18.96 lbs

• Listed Item Weight: 19 pounds

• Operating Temperature: 14 °F ~ 158 °F

• Upper Temperature Rating: 158 °F

• Waterproof Rating: IP67 (Solar Panel Body)

• Kickstands: 4 Adjustable Kickstands

• Panel Positioning Angle: 45°

• USB-A Output: QC3.0

• USB-C Output: PD 60W

• Solar Charging Cable: 10 ft 5-in-1 Cable

• Connector Types: XT60, Anderson, DC7909, DC8020, DC5521

• Quantity: 1

Features

• High-Efficiency Monocrystalline Cells: A+ Grade monocrystalline silicon cells provide up to 23.5% sunlight conversion efficiency for portable solar power generation.

• 200W Solar Power Output: Provides a maximum rated output of 200 W under standard test conditions for charging compatible portable power stations.

• Low-Light Power Generation: Monocrystalline cells continue generating electricity during cloudy conditions, although output decreases significantly compared with direct sunlight.

• Universal Power Station Connectivity: Includes a 5-in-1 solar charging cable with XT60, Anderson, DC7909, DC8020, and DC5521 connectors for compatibility with various portable power stations.

• ETFE-Coated Surface: ETFE lamination provides heat resistance, corrosion protection, and durability for outdoor applications.

• IP67 Waterproof Panel Body: The solar panel body features IP67 waterproof protection against rain and splashes.

• Foldable Briefcase Design: Folds into a compact form with magnetic handles for convenient transportation and storage.

• Four Adjustable Kickstands: Allow panel positioning toward sunlight at an angle of 45°, with the source listing reporting 25-30% more energy capture compared with flat-laying panels.

• Direct USB Charging: Integrated USB-A QC3.0 and USB-C PD 60W ports support direct charging of compatible smartphones, tablets, GPS devices, and cameras.

• Portable Off-Grid Power: Suitable for RV travel, camping, marine applications, home backup, and power outage situations.

• Plug-and-Play Setup: Included solar charging cable and adjustable kickstands support convenient outdoor setup and connection to compatible devices.

Power Station Compatibility

• Connection Options: Supports compatible power stations using DC5521, DC7909, DC8020, Anderson, or XT60 input connections through the included 5-in-1 solar charging cable.

• Input Voltage Requirement: Ensure the connected power station's input voltage limit is above 24.3V (Voc) to prevent equipment damage.

• Input Current Requirement: Charging power may be restricted if the power station's input current is below 9.92A.

• Adapter Cable: Includes DC5521, Anderson, XT60, DC7909, and DC8020 connectors.

Usage and Safety Information

• Sunlight Conditions: Direct, unshaded sunlight provides the fastest charging performance. Output decreases significantly in cloudy or shaded conditions.

• Outdoor Weather Protection: The solar panel body is IP67 waterproof, but the USB hub and connection cables are not fully waterproof.

• Electrical Connection Safety: Keep the junction box and connected electronic devices dry to help prevent short circuits.

• Junction Box Protection: The junction box is water-resistant but not submersible.

• Panel Positioning: Use the four adjustable kickstands to angle the solar panel toward sunlight.

Package Contents

• 200W Portable Solar Panel: 1 unit.

• 5-in-1 Solar Charging Cable: 1 x 10 ft cable with XT60, DC5521, DC7909, DC8020, and Anderson connectors.

• User Manual: 1 unit.
